Gold and Platinum Mining in Africa: How Real-Time XRF Analysis Creates Competitive Advantage

South Africa's Witwatersrand Basin has produced over 50,000 metric tons of gold since mining began in 1886—roughly 40% of all gold ever mined globally. The basin still holds an estimated 6,000 tons of economically recoverable gold. Ghana ranks as Africa's largest gold producer, extracting 130 tons annually. Mali, Tanzania, Burkina Faso, and the Democratic Republic of Congo each produce 40-60 tons per year. Zimbabwe's Great Dyke holds the world's second-largest platinum group metal (PGM) reserves after South Africa's Bushveld Complex. Combined, African nations produce 70% of global platinum, 80% of global rhodium, and 20% of global gold.

The numbers are massive. The challenges are equally large. African mining operations face extreme variability in ore grades—gold content can range from 0.5 g/t (grams per ton) to 50 g/t within the same ore body. Transportation logistics are brutal—many operations sit 200+ kilometers from the nearest assay lab over roads that become impassable in rainy season. Lab turnaround times stretch to 7-14 days in remote areas. Processing decisions based on two-week-old data mean mills crush low-grade ore at high-grade recovery settings (wasting reagents) or process high-grade ore at low-grade settings (losing gold).

Artisanal and small-scale mining (ASM) adds complexity. An estimated 1-2 million people work in artisanal gold mining across Africa, often on the periphery of industrial operations. Concentrate theft is a chronic problem—high-grade material "disappears" between the mine and the mill. Without real-time verification of what material goes where, operations lose 2-5% of production to theft and mismanagement.

XRF analyzers moved assay capability from the lab to the mine. Point an analyzer at ore, get gold, silver, copper, and platinum group metal content in 10-20 seconds. Test material as it comes out of the ground. Sort ore by grade before it goes to the mill. Verify concentrate before shipment. Track material from blast hole to refinery. The mining operations using portable XRF consistently achieve 3-8% higher recovery rates than competitors relying on lab-based quality control—not because they have better ore, but because they make better decisions about how to process it.

This guide covers how XRF optimizes gold and platinum mining operations in Africa, where it delivers the highest return on investment, and why real-time ore analysis increasingly separates profitable operations from marginal ones.

The Ore Grading Challenge in African Mining

African gold and platinum deposits exhibit extreme grade variability. A single ore body might contain zones ranging from 0.3 g/t (barely economic) to 30 g/t (extremely high-grade) gold over distances of just 50-100 meters. Processing all material identically means diluting high-grade ore with low-grade material, reducing overall recovery efficiency and profitability.

Traditional Approach: Bulk Processing

Most operations mine everything above a cutoff grade (typically 0.5-1.0 g/t gold) and send it to the mill. The mill processes all material using average settings—average grind size, average reagent dosing, average retention time. This works reasonably well when ore grades are consistent but fails when grades vary significantly.

Example: An operation mines ore averaging 3.5 g/t gold. Actual distribution: 60% at 2.0 g/t (low-grade), 30% at 4.5 g/t (medium-grade), 10% at 15 g/t (high-grade). Blending everything together and processing at average settings under-recovers the high-grade material (should use higher reagent dosing, longer retention time) and over-processes the low-grade material (wastes reagents). Net result: 88% recovery instead of potential 93% recovery. On 100,000 ounces annual production at $2,000/oz gold, that 5% difference represents $10 million in lost revenue.

The Sorting Solution

XRF enables ore sorting before milling. Test material as it's mined or crushed, segregate by grade, process each grade category optimally:

• Low-grade (0.5-2.0 g/t): Basic processing, minimal reagents, shorter retention time
• Medium-grade (2.0-8.0 g/t): Standard processing
• High-grade (8+ g/t): Intensive processing, maximum reagent dosing, extended retention time, specialized gravity concentration

Each category gets the treatment it deserves. High-grade ore receives maximum attention for maximum recovery. Low-grade ore gets economic processing that extracts most accessible gold without wasting expensive reagents. Overall recovery improves 3-8%, translating directly to higher revenue.

Platinum Group Metals Complexity

Platinum mining adds complexity because PGM ores contain multiple valuable metals—platinum, palladium, rhodium, gold, and base metals (copper, nickel). Relative proportions vary significantly across an ore body. Some zones are platinum-rich (Pt:Pd ratio 3:1), others palladium-rich (Pt:Pd ratio 1:2). Market prices fluctuate independently—rhodium traded at $29,000/oz in 2021, dropped to $4,500/oz in 2023, recovered to $8,000/oz in 2025. Knowing exactly what metals you're processing allows dynamic optimization based on current market prices.

XRF detects platinum, palladium, rhodium, gold, copper, and nickel simultaneously. Testing ore identifies which zones contain premium metal ratios, guiding mining sequences to prioritize high-value material when prices are favorable.

How XRF Works for Precious Metals Analysis

Portable XRF analyzers detect elements from sodium (Na, atomic number 11) through uranium (U, atomic number 92), covering all precious metals and base metals in ore:

Gold (Au): Directly detected and quantified. XRF measures gold content from trace levels (0.1 g/t detection limit with extended analysis) to very high grades (hundreds of g/t in visible gold samples). Analysis time: 20-40 seconds for low-grade ore (0.5-5 g/t), 10-20 seconds for high-grade material (5+ g/t).

Silver (Ag): Directly detected. Often occurs alongside gold in African deposits. XRF quantifies silver content simultaneously with gold analysis—no additional testing time required.

Platinum (Pt), Palladium (Pd), Rhodium (Rh): All directly detected. XRF measures PGM content in sulfide ores typical of Bushveld Complex and Great Dyke deposits. Combined Pt+Pd+Rh readings provide total PGM value estimation for ore sorting decisions.

Base Metals (Cu, Ni, Zn, Pb): Detected simultaneously. Many African gold deposits contain copper, zinc, and lead as byproducts. PGM deposits contain copper and nickel. XRF provides full metal profile in single analysis.

Analysis Modes:

Quick scan (5-10 seconds): Identifies gold presence and approximate grade category (low/medium/high). Sufficient for rapid ore sorting at the face or in the crusher.

Precise mode (20-40 seconds): Accurate quantification (±0.1% absolute accuracy for major elements, ±0.5-1.0 g/t for gold at low concentrations). Use for ore reserve calculations, mill feed verification, and concentrate grading.

Testing Methodology:

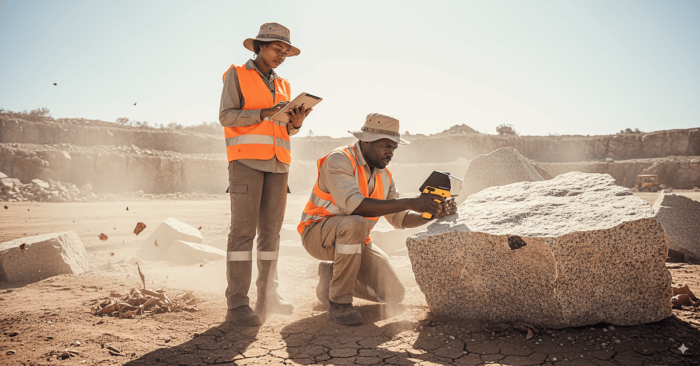

Rock face testing: Geologists test blast holes and exposed faces before mining. XRF readings guide selective mining—high-grade zones get careful extraction to minimize dilution, low-grade zones can be mined more aggressively.

Drill core analysis: Exploration drilling produces cores that are logged and tested with XRF. Results map grade distribution across the deposit, guiding mine planning.

Crusher feed testing: As ore goes through primary crushing, XRF tests representative samples every 15-30 minutes. This verifies what grade is entering the mill and allows real-time processing adjustments.

Concentrate verification: Final concentrates (gold-bearing sulfides or PGM concentrates) are tested before shipment to smelters. XRF confirms metal content, preventing shipping disputes and theft.

Elvatech Analyzers for Precious Metals:

ProSpector 3 Advanced ($25,000-$35,000): Excellent for mining applications. Detects all precious metals with ±0.1% accuracy on major elements. Rugged design handles African mining conditions (dust, heat, moisture, rough handling). Battery life: 8-12 hours for full shift operation.

ProSpector 3 Max ($35,000-$50,000): Delivers 5-10 second analysis for high-throughput operations testing hundreds of samples daily. Helium purge capability provides enhanced light element detection (useful for aluminum, silicon, magnesium in gangue minerals). Worth the premium for large operations where analysis speed directly impacts production.

Jewelry Lab (benchtop, $30,000-$50,000): While designed for jewelry applications, some mining operations use benchtop analyzers in site labs for precise concentrate analysis and quality control where portable units handle field testing.

Where XRF Delivers Highest ROI in African Gold Mining

South African Deep Mines (Witwatersrand, Free State goldfields):

South African gold mining goes deep—some operations reach 3,000+ meters below surface. At these depths, ore haulage costs $15-25 per ton. Mining low-grade material costs the same as mining high-grade material, but the revenue differs dramatically. XRF enables selective mining at the stope face.

Implementation: Equip mine geologists with portable XRF. Test faces before blast hole drilling. Mark high-grade zones for careful extraction. Segregate waste rock (below cutoff) from marginal ore (0.5-2.0 g/t) from high-grade ore (2+ g/t). High-grade ore gets priority haulage and optimized processing. Marginal ore stockpiles for later processing when gold prices are favorable.

ROI example: A deep-level operation producing 5,000 tons ore daily, average grade 4.5 g/t gold. XRF-based sorting identifies 400 tons/day high-grade (12 g/t) and 600 tons/day marginal (1.2 g/t) previously blended with standard ore. Processing high-grade separately with intensive treatment recovers an additional 180 oz gold monthly (previously lost to under-processing). At $2,000/oz, that's $360,000 monthly additional revenue. XRF investment: $30,000. Payback: 25 days.

West African Open-Pit Operations (Ghana, Mali, Burkina Faso, Côte d'Ivoire):

West African gold deposits typically occur in oxide and transitional ores amenable to heap leaching or CIL (carbon-in-leach) processing. Ore variability is extreme—gold occurs in nuggets and coarse particles with erratic distribution. A grab sample might show 0.8 g/t, while another sample 5 meters away shows 15 g/t.

XRF application: Test blast holes after drilling, before blasting. Map grade distribution across the pit. Direct mining equipment to prioritize high-grade zones when mill capacity is constrained. Stockpile marginal material for later processing.

Additional benefit—theft prevention: Artisanal miners often work on the periphery of industrial operations. High-grade material "disappearing" from stockpiles is common. XRF testing stockpile samples provides inventory control—you know how much gold is in each stockpile, making unauthorized removal detectable.

Tanzanian Small-Scale Operations (Lake Victoria goldfields, Geita, Bulyanhulu):

Tanzania has significant small-scale and medium-scale gold mining. These operations face severe cash flow constraints—every ounce of gold recovered matters. Lab assays cost $50-80 per sample with 10-14 day turnaround from Dar es Salaam or South African labs. The cost and delay makes lab testing impractical for daily operations.

XRF provides on-site assay capability at $2-3 per test (consumables + battery amortization). Test material continuously, optimize recovery in real-time, verify concentrate before selling to buyers. For small operations producing 1,000-3,000 ounces annually, a 3-5% recovery improvement from better process control adds $60,000-150,000 in revenue. XRF investment: $25,000-30,000. Payback: 2-5 months.

Platinum and PGM Mining Applications

South African Bushveld Complex (Rustenburg, Marikana, Mogalakwena):

The Bushveld Complex produces 70% of global platinum. PGM ores contain platinum, palladium, rhodium, gold, plus base metals (copper, nickel). Ore grades vary significantly—PGM content ranges from 2-6 g/t combined Pt+Pd+Rh across different reef types (UG2, Merensky, Platreef).

XRF application: Test ore to identify reef type and metal ratios. UG2 reef typically runs Pt:Pd ratio ~3:2 with high chromite content. Merensky reef runs Pt:Pd ~2:1 with higher base metal content. Processing optimization differs—chromite in UG2 requires different milling and flotation parameters than Merensky ore.

Real-time testing allows dynamic blending—if rhodium prices spike (as happened in 2021 at $29,000/oz), operations can prioritize rhodium-rich zones identified through XRF testing. When palladium prices are favorable relative to platinum, blend more UG2 (higher Pd ratio) into the mill feed.

Zimbabwean Great Dyke (Mimosa, Zimplats, Unki):

Zimbabwe's PGM deposits are similar geologically to Bushveld but face different economic conditions—access to capital is limited, equipment imports are challenging, operational efficiency is critical for survival.

XRF provides affordable quality control. At $25,000-35,000, portable analyzers cost less than a month's production from a small PGM operation. Testing ore before processing and verifying concentrates before shipment prevents costly errors. Zimbabwe operations often sell concentrate to South African smelters—accurate grade determination prevents disputes and ensures fair payment.

Concentrate Theft Prevention and Chain of Custody

Gold and platinum concentrates are extremely valuable and easily stolen. A bucket of gold concentrate might contain $50,000-100,000 worth of metal. Concentrate theft represents 2-5% losses at many African operations.

XRF for Theft Prevention:

Test concentrates at multiple points:

• At production: When concentrate leaves flotation or gravity circuits
• At storage: Random testing of stockpiled concentrates
• Before shipment: Final verification before loading trucks

Any discrepancy between expected and actual metal content signals potential theft. XRF testing takes 30-60 seconds—fast enough to test every batch.

Example: A gold operation produces 50 kg concentrate daily containing 35% gold (17.5 kg gold = 563 oz = $1.1 million monthly at $2,000/oz). XRF testing at production shows 35.2% gold. Testing at shipping shows 31.8% gold. The 3.4% discrepancy represents $115,000 monthly theft. XRF testing cost: negligible. Theft prevention value: $1.38 million annually.

Chain of Custody Documentation:

Modern XRF analyzers (ProSpector 3 series) include GPS tagging, timestamp recording, and Bluetooth data transfer. Each test creates a digital record: sample ID, GPS location, timestamp, operator, results. This documentation provides auditable chain of custody from mine to smelter, essential for:

• Insurance purposes: Proving metal content for transit insurance
• Regulatory compliance: Meeting export documentation requirements
• Smelter negotiations: Verifying concentrate grades prevent payment disputes
• Theft investigation: Identifying where losses occur

Common Mistakes in Mining XRF Programs

Mistake #1: Testing Only High-Grade Visible Gold

Some operations test only material where gold is visible, assuming low-grade ore doesn't warrant testing. This misses the entire point—XRF identifies subtle grade variations in visually similar material, enabling optimization.

Solution: Test systematically, not selectively. Test low-grade material to verify it's actually low-grade. Test medium-grade material to identify higher-grade zones within it.

Mistake #2: Not Calibrating for Local Ore Matrix

XRF accuracy depends partly on ore matrix (surrounding rock). African gold ores vary from quartz-dominated (Ghana, Tanzania) to sulfide-rich (South Africa) to iron-oxide-dominant (West Africa laterites). Generic calibrations work reasonably well but ore-specific calibrations improve accuracy.

Solution: Develop site-specific calibrations by testing 20-50 samples with both XRF and certified lab assays, then creating a correlation curve. This typically improves XRF accuracy from ±1.0 g/t to ±0.3-0.5 g/t for gold at low concentrations.

Mistake #3: Ignoring Base Metal Credits

Focus solely on gold while ignoring copper, zinc, and lead in polymetallic ores leaves money on the table. XRF detects all metals simultaneously—use all the data.

Solution: Calculate total metal value, not just gold value. A sample showing 2.5 g/t gold + 0.8% copper + 1.2% zinc might be worth 30% more than the gold value alone suggests.

Mistake #4: Not Training Operators Properly

Geologists and mill operators accustomed to lab-based workflows sometimes don't trust XRF results initially, second-guessing readings or demanding lab confirmation for every decision.

Solution: Implement side-by-side testing—test 50 samples with both XRF and lab, demonstrate that XRF results match lab results within ±0.1% for major elements and ±0.5-1.0 g/t for gold. Once operators see the correlation, confidence builds.

Regional Considerations for African Mining

Infrastructure Challenges: Many operations are 200+ km from assay labs over poor roads. Rainy season (3-6 months annually in tropical regions) makes roads impassable. Lab turnaround extends from 7 days dry season to 14-21 days during rains. XRF eliminates dependence on external labs.

Power Supply: Grid power is unreliable in much of Africa. Mining operations use generators. XRF analyzers operate on battery power (8-12 hours per charge), eliminating dependence on power infrastructure. Solar charging works in sunny regions.

Dust and Heat: African mines face extreme dust (Sahel region) and heat (40-50°C in West Africa). Equipment needs IP54+ dust/moisture protection and operating range -10°C to +50°C. Elvatech ProSpector series meets these specifications.

Security: Equipment theft is a concern. XRF analyzers include password protection and can be GPS-tracked. Store in secure locations overnight. Some operations assign dedicated geologist responsibility for analyzer security.

Import and Export: Most African countries require import permits and pay duties on scientific equipment (5-25% depending on country). Factor import costs into budget. Equipment intended for temporary use (exploration programs) may qualify for temporary import permits avoiding duties.

FAQ: XRF for Gold and Platinum Mining

Conclusion: Real-Time Data Determines Profitability

African gold and platinum mining operates on thin margins. Ore grades average 3-6 g/t for gold, 3-5 g/t combined PGMs for platinum. At these grades, a 3-5% recovery improvement represents the difference between profit and loss. Processing decisions based on two-week-old lab data mean treating low-grade ore like high-grade ore (wasting reagents) and treating high-grade ore like low-grade ore (losing metal).

XRF analyzers move quality control from the lab to the mine. Test ore at the face, in the crusher, at the mill, and before shipment. Make processing decisions based on current data, not last week's data. Verify what you're producing. Prevent theft. Optimize recovery.

The economics are compelling:

• Recovery improvement: 3-8% typical
• Revenue increase: $200,000-$500,000 annually for medium operations
• Investment: $25,000-$35,000
• Payback: 1-3 months

Mining operations using portable XRF consistently outperform competitors relying on lab-based quality control. The technology exists. The ROI is overwhelming. The competitive advantage goes to early adopters.
