Meet the basic XRF system for Your lab

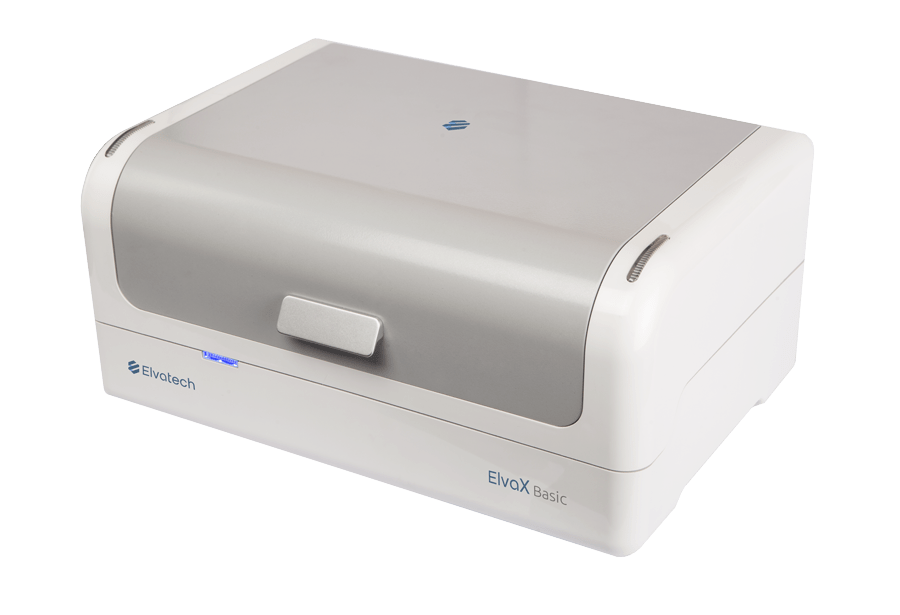

ElvaX Basic is a compact cost effective Energy Dispersive X-ray Fluorescence (EDXRF) spectrometer ideally suited for both qualitative and quantitative analysis of solids, liquids and powders in the element range from S (Z=16) to U (Z=92) in a wide range of concentrations.


With advanced hardware and comprehensive software, the EvaX Basic offers the most precise and accurate analysis of materials


Dynamically Adaptive Shaping (DAS) DPP developed by Elvatech makes the ElvaX Basic the fastest Si-PIN diode based analyzer on the market


Thanks to the digiX-40 digital X-Ray source, automatic temperature correction, and automatic calibration adjustment, ElvaX Basic offers long-life reproducibility of the analysis without the need to re-calibrate the system


  • Low cost
  • High speed and accuracy
  • Compact. Doesn’t occupy much space on a desk
  • Ergonomic design
  • High-performance analytical software included

ElvaX Basic is a cost effective high-performance solution to be applied in such spheres as jewelry, alloy sorting and express QC.

ElvaX Basic combines powerful analytical software toolkit with an easy-to-use interface, allowing even novice operators to perform any necessary measurements in minutes!

In the lab or in the production facilities, with ElvaX Basic you can get the performance and precision of an expensive powerful benchtop spectrometer at a considerably lower cost.

Fast and Simple

Just connect your ElvaX Basic to a PC via the USB port, switch it On, and run the ElvaX (TM) software. All you need to get the composition of your sample!

Timely Service

Our priority is to minimize downtime of our instruments by efficient and timely service and delivery.


Digital X-Ray Source digiX-40
Anode: W
Voltage: 40 kV
Current: 200 uAmp
Power: 4 W

X-Ray Detector
Type: Si-PIN (optional SDD)
Area: 6 mm2 (25 mm2 for SDD)
Energy resolution: 165 eV at Mn Kα (140 eV for SDD)

DPP: proprietory DAS (Dynamically Adaptive Shaping) type, 80 MHz sampling rate
MCA: 4096 channels

Dimensions: 430 х 340 х 200 mm
Weight: 13 kg
Power supply: 90 – 240 VAC, 50/60 Hz
Power consumption: 40 W

Operating system: Windows XP/Vista/7/8/10
Analysis algorithms: Fundamental parameters (FPA), Empirical (regression) calibrations, Manual spectra comparison


  • Warranty and Service

    You have chosen an XRF spectrometer or an ELVATECH analyzer, which means that most likely you will not need the information presented in this section. However, even the most reliable equipment may require service.

      ELVATECH provides warranty and post-warranty maintenance of XRF spectrometers and analyzers at the company's service center in Kyiv, at authorized service centers of our representatives in dozens of countries on all continents, as well as at three global service centers in Europe, Asia and America.

      The concept of service from Elvatech is that the maintenance and repair of our XRF spectrometers is not the center of the company's income, but a loyalty program for our customers. Service is carried out quickly, efficiently and on a non-profit basis. This approach greatly reduces the cost of using our XRF spectrometers and analyzers and provides maximum comfort for our customers.
  • Payment and Delivery

    ELVATECH delivers its products, XRF spectrometers and analyzers, to customers from all over the world. Delivery is carried out by courier services both directly from our enterprise on the terms of CPT, Incoterms 2020, and through a network of representative offices located in many countries on all continents on the terms of DDP.

      The delivery time is from one to four weeks and depends on the type of spectrometer, the required calibrations and the availability of finished instruments in stock.

      The equipment is usually delivered after receiving 100% payment to our bank account. For regular partners and dealers, individual payment terms are provided.
